The Range

Three model types are available : Unico Air, Easy, Unico Standard, Unico Inverter,

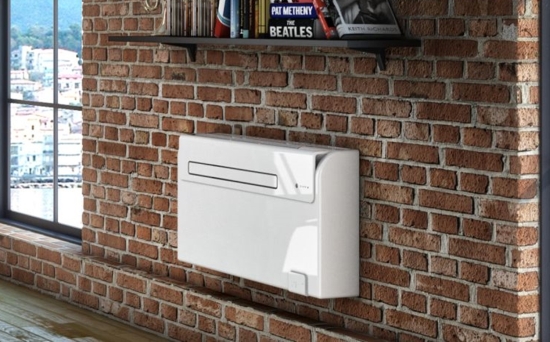

Unico Air

Introduced in 2015 the Air is the quietest, slimmest air conditioning unit of it's type with a profile just 16cm deep and noise levels from a whisper quiet 27db.

The unit is avaliable in both cooling only and cooling & heating configurations with a capacity of 1.8kW.

Unit dimensions are 491 high x 978mm wide x 164mm depth

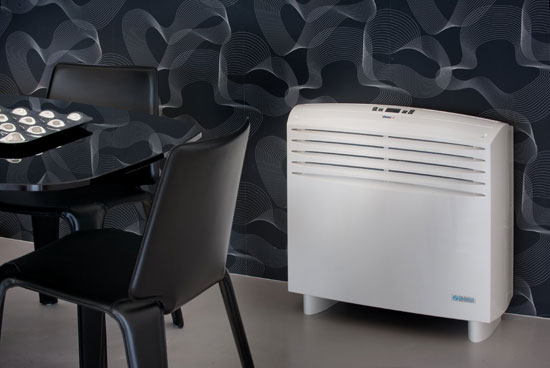

Easy

The easy is Olimpia Splendid's entry model with a very competitive price.

Designed by King and Miranda, the Easy is a low level floor mounted self contained air conditioning unit which requires no external unit - just two small holes through an outside wall. Unit dimensions are 666mm high x 693mm wide x 276mm deep.

Perfect for use in domestic conservatories, lounges and bedrooms, the Easy has a cooling capacity of 2.05kW and operates with a low noise level of 36dbA. Please note that the Easy is a floor standing unit supported by the floor, but can be mounted agaist a wall.

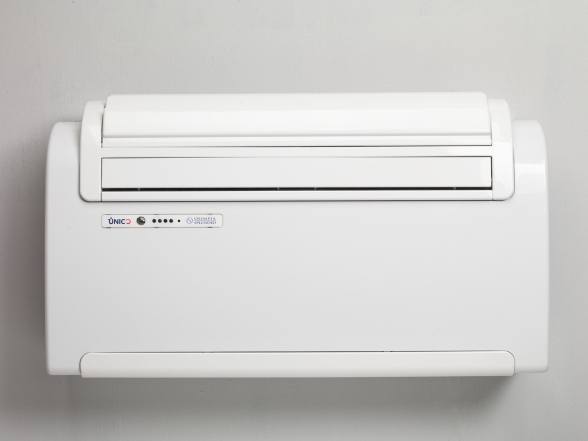

Unico Standard

The Unico Smart is a slimmer higher capacity unit (2.1kW or 2.6kW) with a low height of 516mm making it perfect for mounting against dwarf walls found in most conservatories. Unit dimensions are 516 high x 902mm wide x 229mm deep.Noise levels as low as 34dbA are a feature. A standard stop/start fixed speed compressor is fitted. The unit is available in both heating and cooling modes and comes equipped with an infra red remote controller.

The unit is wall mounted and can be used at high or low level.

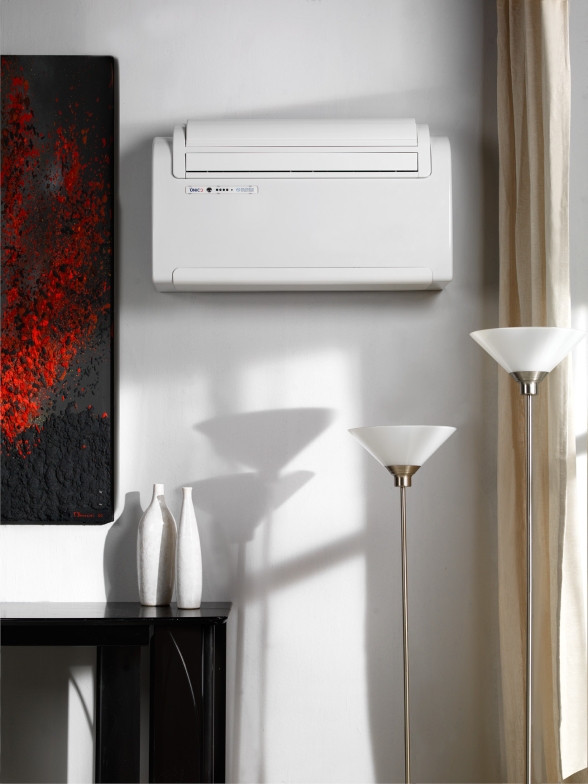

High level installation example.

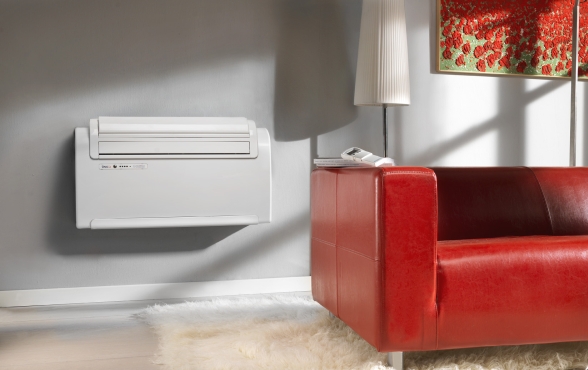

Low level installation example.


Unico Smart Range Specifications

Olimpia Easy & Unico Fixed Speed Specifications

    Easy SF Easy HP Unico Smart 10SF Unico Smart 10HP Unico Smart 12SF Unico Smart 12 HP Unico AIR 8SF Unico AIR 8HP

Cooling Capacity

kW

2.05

2.0

2.10

2.10

2.60

2.60

1.8 1.8

Heating Capacity

kW

-

2.0

-

2.10 -

2.50

- 1.87

Room Air Volume (max)

(m³/hr)

328

310

490

490

490

490

215 215

Outside Air Volume

(m³/hr)

429

430

520

520

520

500

380 380

Power Requirements

Volts

230

230

230

230

230

230

230 230

Power Requirements

Hz

50

50

50

50

50

50

50 50

Power Consumption

Watts

775

763

765

765

945

945

670 670

EER

-

2.65

2.62

2.75

2.75

2.75

2.75

2.60 2.60

Noise Level (min)

dBA

36

36

34

34

34

34

27 27

Fan Speeds

-

3

3

3

3

3

3

3 3

Measures (H x W x D)

mm

666 x 693 x 276

666 x 693 x 276

516 x 902 x 229

516 x 902 x 229

516 x 902 x 229

516 x 902 x 229

491 x 978 x 164 491 x 978 x 164

Weight

kg

39

39

40

40

40

40

  37

Refrigerant Gas

-

R410a

R410a

R410a

R410a

R410a

R410a

R410a R410a

Wall Holes Diameter

mm

162

162

202

202

202

202

162 162

Energy Class in Cooling

-

A

A

A

A

A

A

A A

Energy Class in Heating

-

-

B

-

A -

A

- A
Mainland UK delivered price including 20% VAT   £975 £1095 £1245 £1370 £1370 £1495 £1198 £1366
Mainland UK delivered price excluding VAT   £812.50 £912.50 £1037.50 £1141.67 £1141.67 £1245.83 £999 £1139
Price list effective 14/05/15

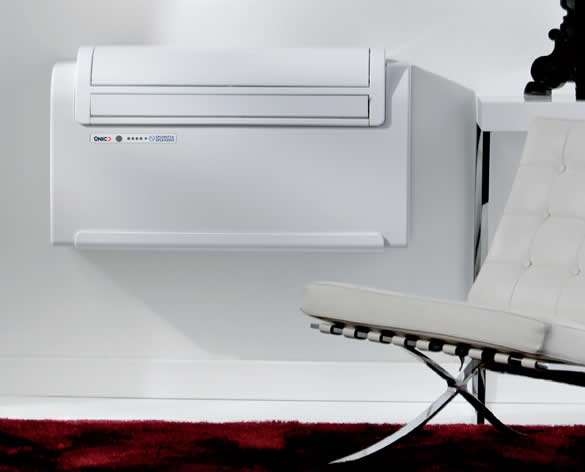

Unico Inverter Range

For 2011 Olimpia Splendid have introduced additional higher specification Unico models utilising DC Inverter technology.

Identical in size to the Unico Smart but equipped with DC inverter technology.

DC Inverter technology with a variable speed compressor, allows the compressor within the unit to adjust its speed to match the required performance exactly - this compares with a conventional fixes speed system which operates at full speed and switches off and then later switches on again to try and control temperature.

Benefits over a standard fixed speed system include :

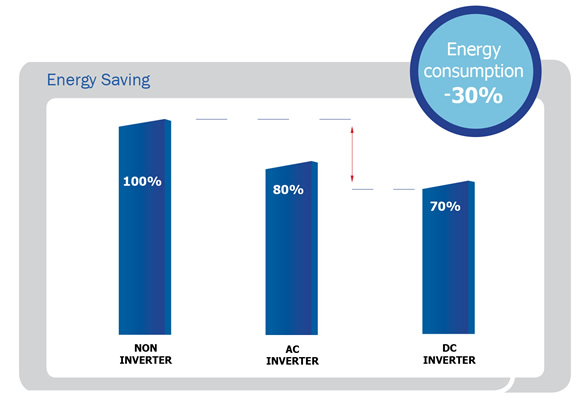

Typical Energy Saving - Unico Inverter Range



Unico Inverter Range Specifications

Olimpia Unico Inverter Specifications

    Unico Inverter 9SF Unico Inverter 9HP Unico Inverter 12SF Unico Inverter 12HP

Cooling Capacity

kW

2.7

2.7

3.10

3.10

Heating Capacity

kW

-

2.7 -

3.0

Room Air Volume (max)

(m³/hr)

490

490

490

490

Outside Air Volume

(m³/hr)

520

520

520

500

Power Requirements

Volts

230

230

230

230

Power Requirements

Hz

50

50

50

50

Power Consumption

Watts

425

525

500

500

EER

-

2.70

2.70

2.70

2.70

Noise Level (min)

dBA

34

34

34

34

Fan Speeds

-

3

3

3

3

Measures (H x W x D)

mm

506 x 902 x 229

506 x 902 x 229

506 x 902 x 229

506 x 902 x 229

Weight

kg

39

39

39

39

Refrigerant Gas

-

R410a

R410a

R410a

R410a

Wall Holes Diameter

mm

202

202

202

202

Energy Class in Cooling

-

A

A

A

A

Energy Class in Heating

-

-

A -

A

Mainland UK delivered price including 20% VAT   £1495 £1620 £1620 £1745
Mainland UK delivered price excluding VAT   £1245 £1350 £1350 £1454.17
Price list effective 01/06/13



All Olimpia units come with a 12 month RTB warranty.

For further information on the Unico Inverter see the following video:





For further information please click on the link below to download the Olimpia Splendid 2011 Range Brochure pdf :

Olimpia Splendid 2011 Range Brochure
